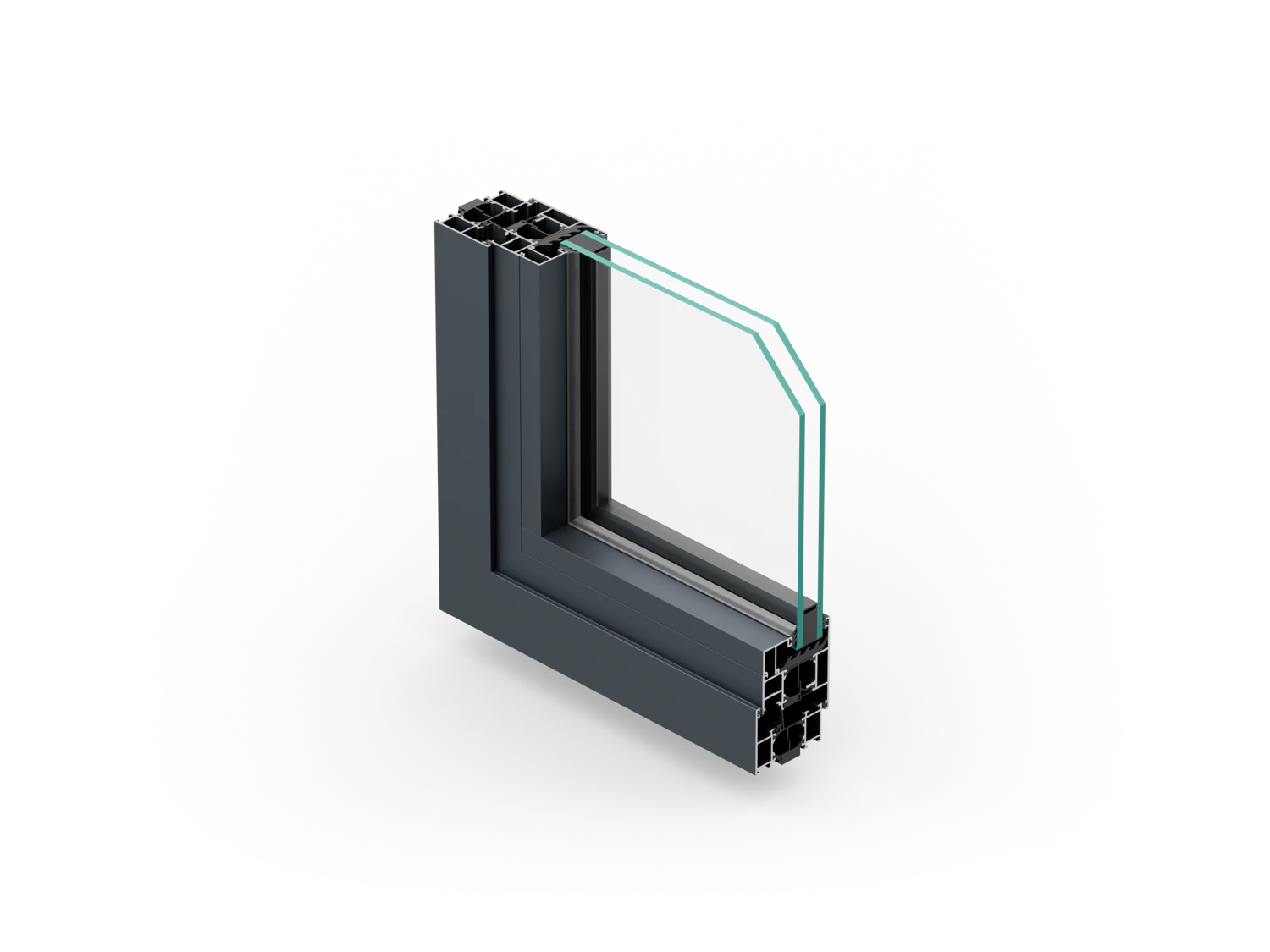

AA®720 Standard Casement Window

The AA®720 Casement Window is available in a range of increasing levels of thermal performance as either top hung or side hung windows with the option of dual colour.

  • Range of locking options available – for flexibility. Choose from standard Espagnolette locking to enhanced security in line with PAS 24:2016
  • Projected top hung or side hung or butt hinge options – total flexibility, suits most casement project applications
  • Suites with the AA®720 series, AA®100/AA®110 Curtain Walling, 451PT Framing and Door Systems

Thermal

The AA®720 Casement Window is available in a range of increasing levels of thermal performance.

  • U-Value range 1.4 – 2.0 W/m²K
  • Reflex thermal break technology
  • Available in a range of increasing levels of thermal performance, starting with the highest: AA®720 HI ReflexPlus, the AA®720 HI Reflex, AA®720 HI and AA®720 HW.

Weathering

Independently tested weather performance

  • Windload Class AE2400
  • Air Permeability Class 4
  • Watertightness Class 7A

Security

Independently tested to PAS 24:2016.

  • Enhanced security locking
  • Box beads
  • Secured By Design accredited

Size and Weight Capability

Suitable for even the most demanding of applications.

  • Maximum size 2500mm
  • Fixed Light 300KG
  • Top Hung 130KG
  • Side Hung 52KG
  • Infill Width 60mm

Total Flexibility

Projected top hung, side hung or butt hinge options offer exceptional versatility.

  • Two options for suited hardware, handle and locking options
  • Choice of restrictors in-line with Document M and HTM 55 regulations/BS 8213 (100mm initial opening).
  • Internally or externally glazed

Safe and Sustainable

Specify with complete confidence.

  • Offset handle position for side hung windows.
  • Safety in use for ‘Lifetime Homes’ Specification
  • Folding Openers with Link Bars
  • BRE Green Guide ‘A’ Rated Frame

– Trickle Ventilation option to help meet Document F requirements

– Dual colour finishes  for design flexibility

– Choice of muntins and coupling mullions

Winkhaus aluPilot

Kawneer’s AA®720 open in windows are now available with Winkhaus aluPilot Topstar hardware. Topstar facilitates installation efficiencies to significantly reduce production costs. Component insertion into the fitting groove of the sash frame eliminates upstream work processes, such as punching and cutting connecting rods to length.

The AA®720 when combined with aluPilot Topstar can scale to your projects demands with ease. It’s a perfect pairing.

  • Supports Turn, Turn-Tilt, Tilt-Before-Turn, and French Casement configurations
  • 30% faster to fabricate
  • Fewer components
  • Minimal tooling
  • Eliminates punching or cutting
  • 180KG weight concealed hinge



Scale aluPilot to your project’s specification with minimal additional components.

  • BM Trada Q Mark Compliant
  • PAS24
  • RC2 & RC3
Finishes Brochure
367 KB
Window System Brochure
19 MB
Suited Handle Brochure
3 MB
For all technical documents, visit Kawneer Online
PERFORMANCE
U value
1,4 - 2,0 W/m²K
Windload
Class AE2400
Air Permeability
Class 4
Watertightness
Class 7A
Glazing weight
300kg
Security
PAS 24
Acoustics
C;Ctr = 39 (-2, -5) dB
Certification
Passive House
KEY FEATURES
Maximum size
2500mm
Frame width
24mm - 64mm
System depth
72mm
Minimum sightline
23mm
Glazing thickness
22mm - 60mm
Glazing type
Double, Triple
Drainage and ventilation
Multi-point locking
Restrictor
(Document M)
Open options
Open out
Finishes
130+
ARRANGEMENTS & WEIGHT LIMITATIONS
Top hung
(130kg)

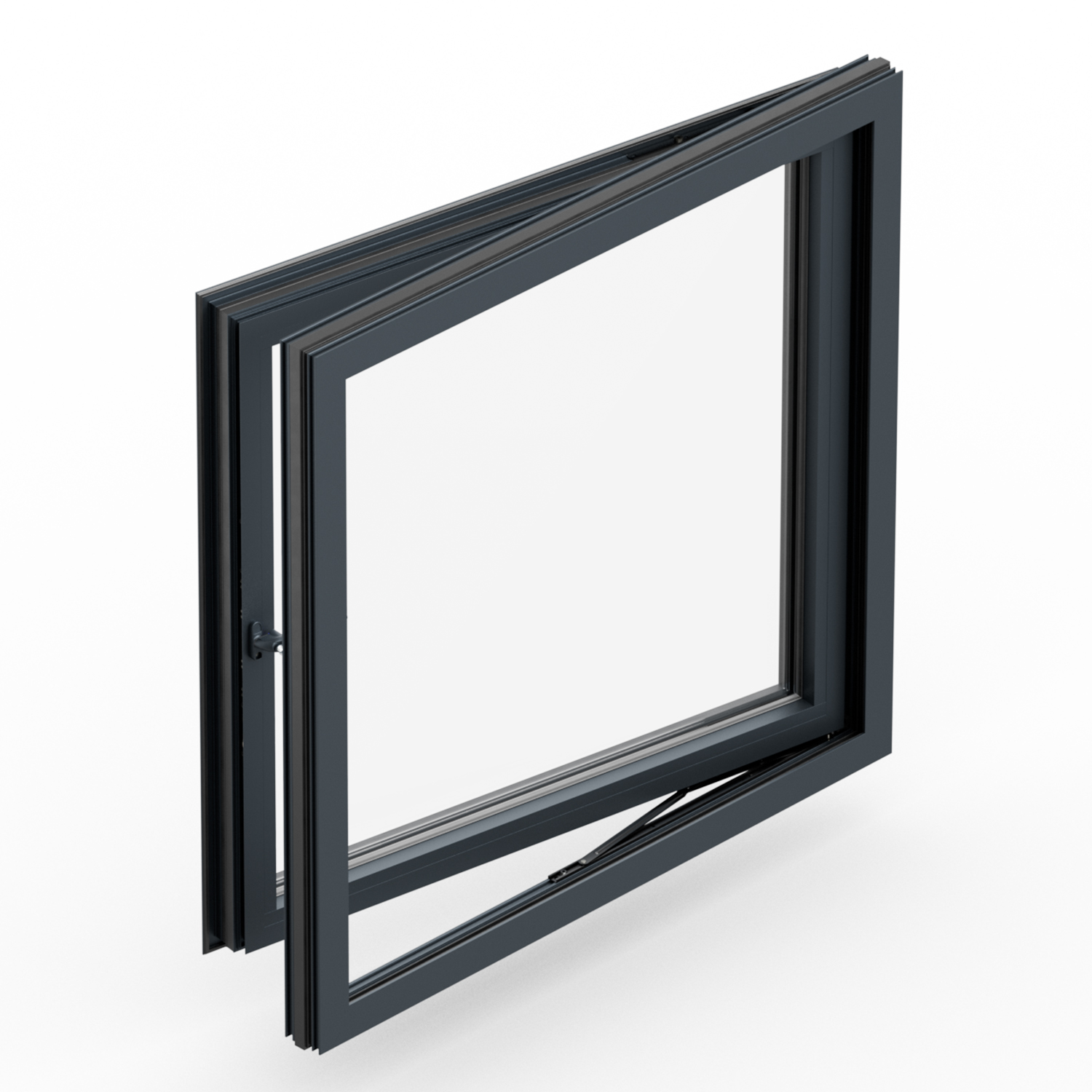

Side hung
(52kg)
2 stage opening
Bottom hung
TBT
Turn-Tilt
French casement
Parallel opening

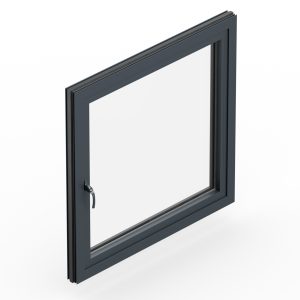

Fixed Light
(300kg)
Horizontal pivot
Vertical pivot
Kawneer’s BIM Models are downloadable in the Revit format and also available on request as IFC files.

Our BIM Models provide users with 3D images of the products as well as the critical COBIE data to provide guidance through the whole design and construction process.
